Single punch tablet press
Model: TDP1.5
Stock: In stock
Certificate: CE, ISO9001, GMP
Weight: 65kg
Production capacity: 4500-6000pcs/hour
- Product Description
Product Introduction
In the vast market of tablet pressing equipment, the TDP1.5 aluminum alloy material single punch tablet press has become a popular choice among many enterprises due to its unique advantages and excellent performance. It has brought great convenience and improvement to the production of industries such as pharmaceuticals, food, and chemicals with its high efficiency, precision, and stability.
The advantages of aluminum alloy material are Efficient production, improving production capacity:
The TDP1.5 single punch tablet press has fully considered the improvement of production efficiency in its design. Its high-speed stamping frequency can complete a large number of pressing tasks in a short period of time, meeting the needs of large-scale production in enterprises. The advanced material conveying system adopts optimized design, which can quickly and accurately convey materials to the stamping station, reduce material waiting time, and further improve production efficiency. At the same time, the automation level of the equipment is high, and operators only need to perform simple parameter settings and monitoring. The equipment can automatically complete continuous stamping operations, greatly saving labor costs and improving production stability and consistency.
Main Parameter
Product quality is the lifeline of an enterprise, and TDP1.5 single punch tablet press performs excellently in terms of tablet accuracy. High precision pressure sensors can monitor pressure changes in real-time during the stamping process and provide feedback to the control system. The control system precisely adjusts the stamping pressure based on preset pressure parameters, ensuring that the weight difference of each product is controlled within a very small range and guaranteeing the accuracy of the product dosage. In addition, the punching die of the equipment is made of high-quality steel and undergoes fine processing and heat treatment technology, which has good wear resistance and precision retention. The surface smoothness of the stamping die is high, which can effectively avoid material adhesion, ensure smooth and beautiful tablet surface, and meet high quality requirements.
| Feature | Description |
|---|---|
| Max Tablet Pressure | 15 kN |
| Maximum Tablet Diameter | 12 mm |
| Maximum Tablet Thickness | 6 mm |
| Production Capacity | 6000 tablets/hour |
| Motor Power | 0.37 kW |
| Weight of Machine | 65 kg |
| Dimensions (L x W x H) | 700*340*610 mm |
We can offer make custom punch die as your request

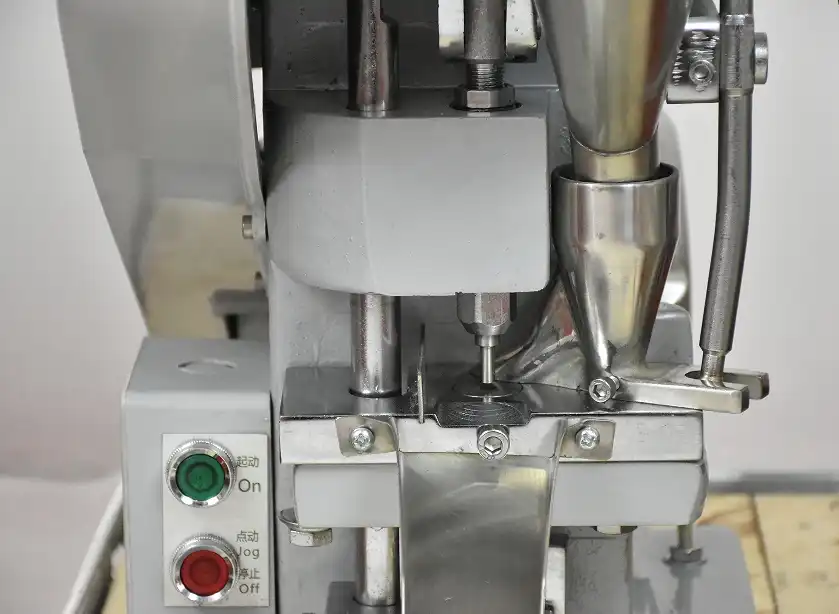

Tablet machine press details real photos:
The aluminum alloy material endows the TDP1.5 single punch tablet press with excellent durability. Aluminum alloy has high strength and hardness, and can withstand frequent stamping impacts without being easily damaged. Meanwhile, its excellent corrosion resistance enables the equipment to maintain stable performance when facing various materials of different properties, without affecting the service life of the equipment due to material corrosion. The body of the equipment is made of aluminum alloy integral casting technology, with a compact structure and strong stability, reducing vibration and noise during operation, providing a solid guarantee for the long-term stable operation of the equipment.

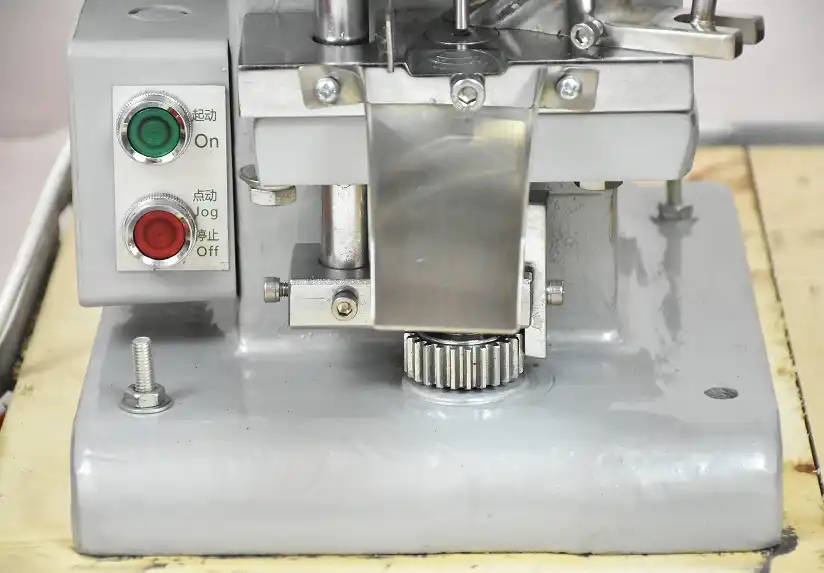

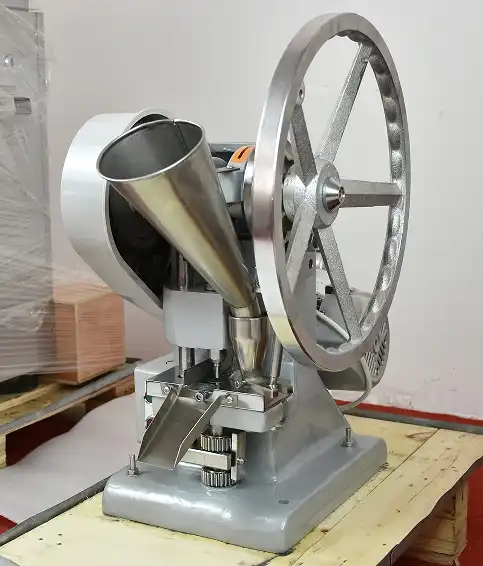

Tablet machine press real photos show
We focus on user experience, and the TDP1.5 single punch tablet press fully embodies the concept of humanization in its design. The operation interface of the device is simple and intuitive, with a large-sized display screen and easy-to-use buttons. Operators can easily set various parameters and monitor the device status. The maintenance of the equipment is also very convenient, with a reasonable layout of various components that are easy to disassemble and install. The equipment is also equipped with comprehensive safety protection devices, such as emergency brake buttons, protective door interlocking devices, etc., to ensure the personal safety of operators during the operation process.
Application Areas
The TDP1.5 aluminum alloy material single punch tablet press has a wide range of applicability.
In the pharmaceutical industry, it can be used to compress various drug tablets, including regular tablets, coated tablets, dispersible tablets, etc., to meet the dosage form requirements of different drugs.
In the food industry, it can be used to make candy tablets, chewing gum tablets, nutritional tablets, etc., enriching the types and forms of food.
In the chemical industry, it can be used to compress various chemical raw material tablets, such as battery material tablets, catalyst carrier tablets, etc.
Whether it is conventional materials or materials with special properties, TDP1.5 can achieve efficient and stable tablet production through appropriate adjustments and configurations.

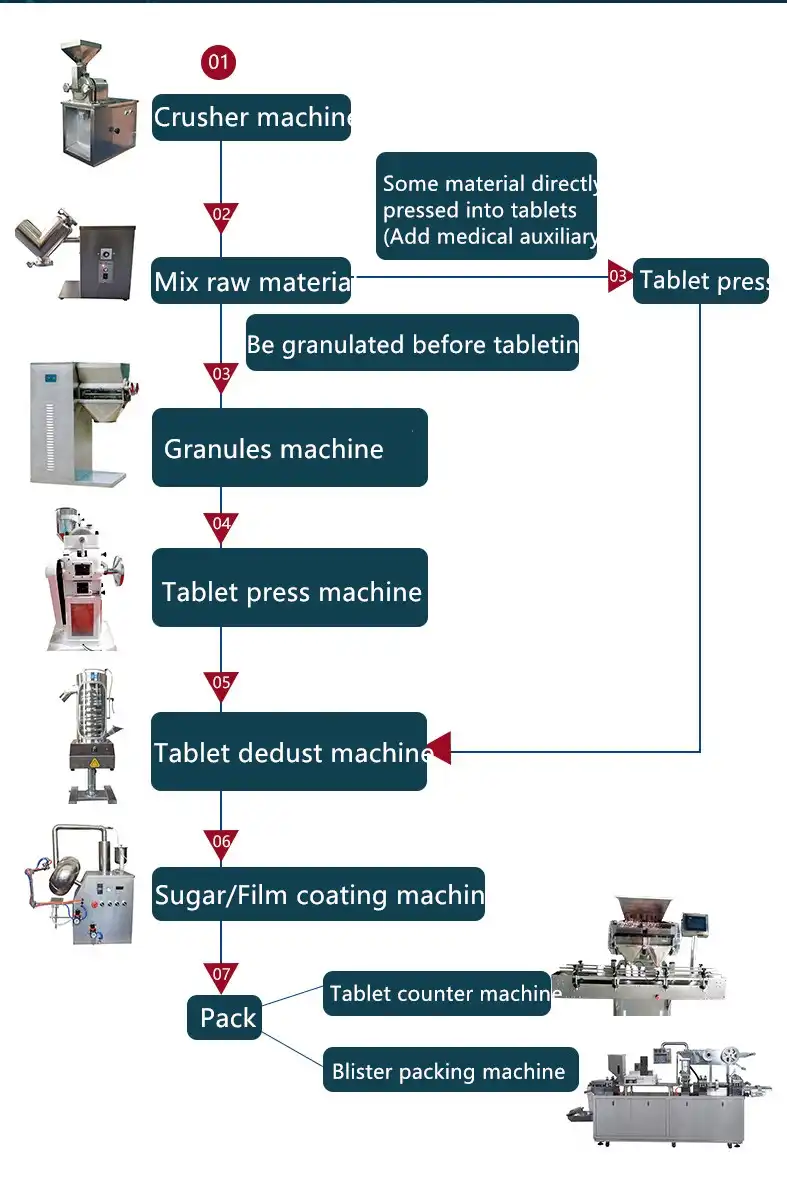

Production Process
The single punch tablet press operates through a simple yet efficient process:
- Feeding: Raw material (powder) is placed into the hopper, through feeder into punch die.
- Pressing: The material is compressed under high pressure to forming tablets.
- Ejection: The finished tablets are ejected from the die cavity.
- Quality Control: Tablets are examined for uniformity in size, weight, and appearance.

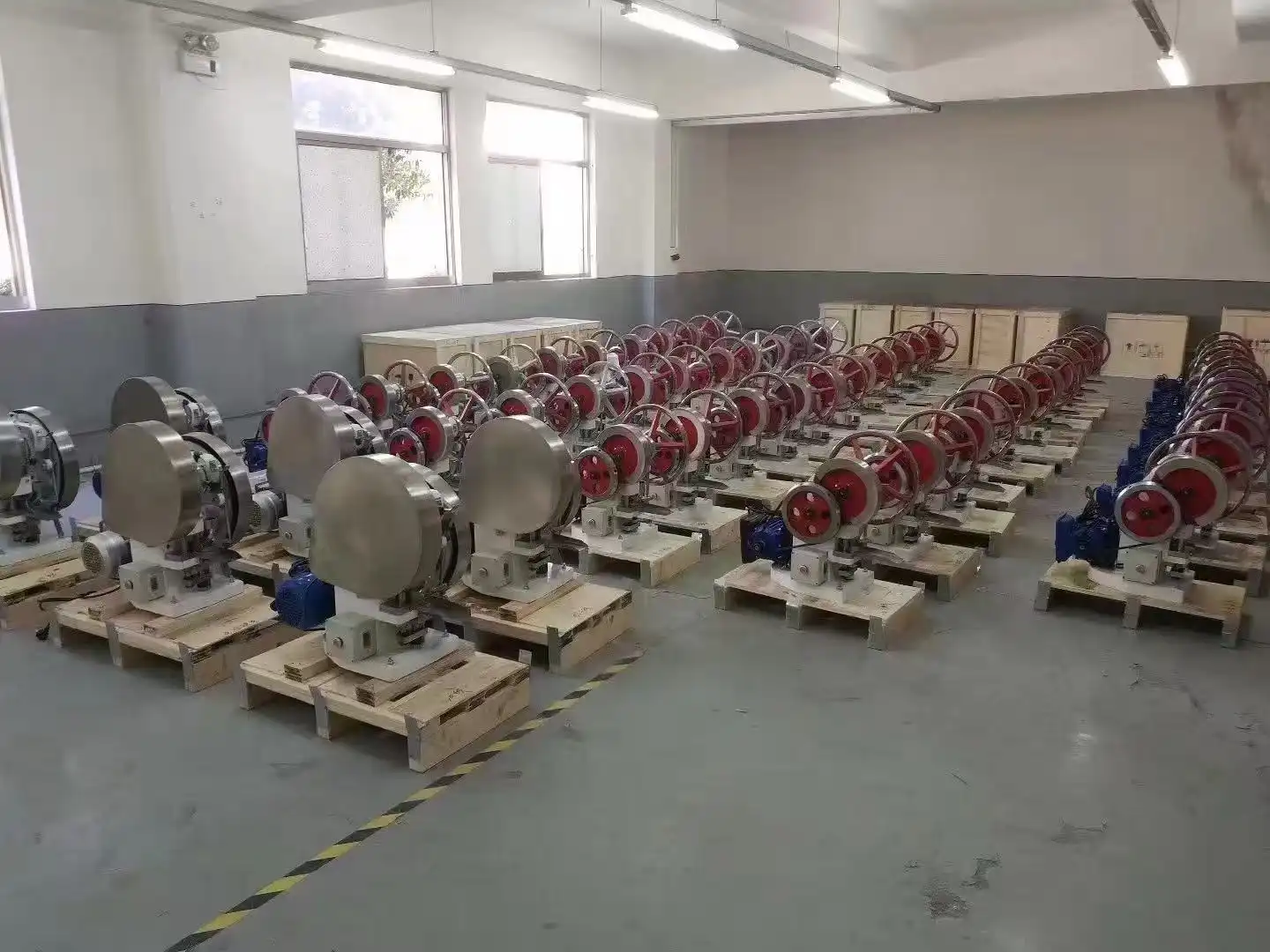

Our Wearhouse
By purchasing the TDP1.5 single punch tablet press, you will enjoy our comprehensive high-quality service. Our professional team will provide full guidance and support in equipment selection, installation, debugging, and operator training. During the use of the equipment, we provide timely after-sales maintenance services to ensure that any malfunctions can be quickly resolved and downtime reduced. At the same time, we will regularly conduct follow-up visits and maintenance on the equipment to provide guarantees for its long-term stable operation. We are customer-centric and committed to providing customers with the most satisfactory product and service experience.
FAQ
Q1: What is the maximum output capacity of the single punch tablet press?
A1: The machine can produce between 30,00 to 60,00 tablets per hour, depending on the tablet size and material.
Q2: Can this machine handle both small and large-scale production?
A2: Yes, the machine is ideal for both small-scale and large-scale operations due to its flexibility and adjustable settings.
Q3: Is training provided for machine operation?
A3: Yes, we provide full training on operation, maintenance, and troubleshooting to ensure you get the best performance from your machine.
Q4: How long does it take for delivery?
A4: Delivery time typically ranges from 5-7 days by DHL and Fedex, because this machine is small and lightweight, so we can offer DDP including custom clearance and tax fee for you.
Conclusion
The Single Punch Tablet Press from Factop Pharmacy Machinery Company is your trusted partner for high-quality tablet production. With its precise, efficient, and reliable performance, it's perfect for pharmaceutical, food processing, health care product manufacturing, and more.
Contact us today for more information at michelle@factopintl.com or to request a sample. We look forward to helping you streamline your production process and achieve consistent results.
