How does a rotary tablet making machine work?

The rotary tablet making machine represents a cornerstone of modern pharmaceutical manufacturing, transforming powder materials into precisely formed tablets through a sophisticated mechanical process. This advanced piece of equipment combines precision engineering with automated technology to produce pharmaceutical tablets efficiently and consistently. Understanding its operational mechanics is crucial for pharmaceutical manufacturers and technicians who rely on these machines for high-volume tablet production.

Core Operating Principles of Rotary Tablet Machines

Mechanical Components and Their Functions

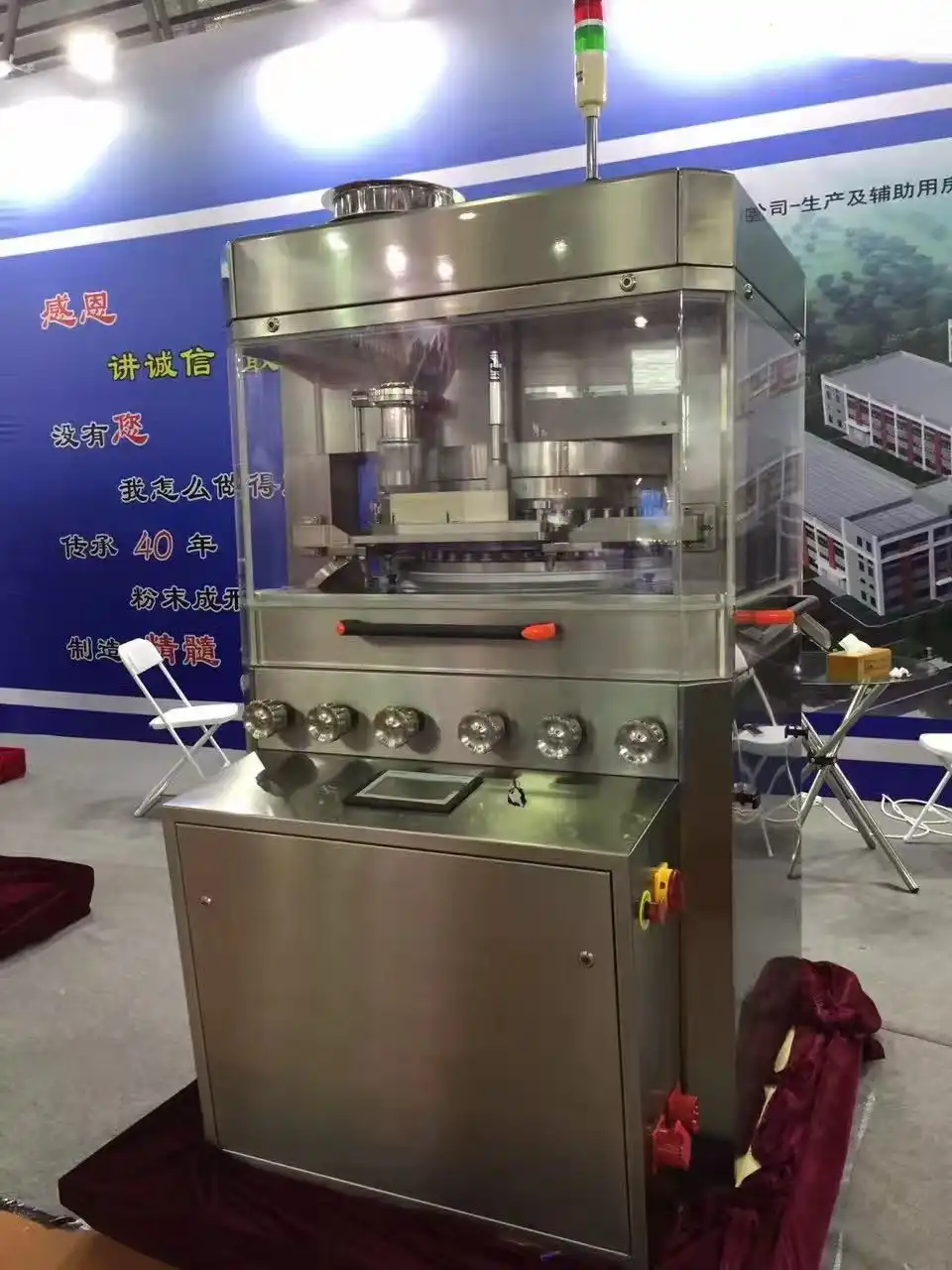

The rotary tablet making machine's functionality hinges on its precisely engineered mechanical components. At its heart lies the rotating turret, which houses multiple tooling stations equipped with upper and lower punches and dies. The ZP-12B model, for instance, features 12 punch stations capable of producing up to 20,600 tablets per hour. This configuration allows for continuous tablet production while maintaining strict quality control. The machine's robust design incorporates a maximum pressure capability of 60KN, enabling it to handle various formulation requirements. The precision-engineered dies accommodate both irregular tablets up to 20mm and round tablets up to 18mm in diameter, with a maximum filling depth of 15mm, demonstrating the machine's versatility in pharmaceutical manufacturing.

Feed System and Material Flow

The feed system in a rotary tablet making machine plays a critical role in ensuring consistent tablet production. The process begins with the gravity-fed hopper system, which channels the powder mixture into the feed frame. This component distributes the powder uniformly across the die table, ensuring each die cavity receives the proper amount of material. The feed frame's design incorporates sophisticated mechanisms to prevent powder segregation and maintain uniform powder density. Advanced models feature automated weight control systems that continuously monitor and adjust the filling process, ensuring each tablet meets exact weight specifications. This precise control over material flow is essential for maintaining pharmaceutical quality standards and achieving consistent tablet characteristics.

Compression and Ejection Mechanisms

The compression and ejection phase represents the culmination of the tablet-making process. As the turret rotates, the upper and lower punches pass between compression rollers, applying precise pressure to compress the powder into tablets. The machine's sophisticated pressure control system maintains consistent compression force across all stations, crucial for tablet uniformity. The ejection mechanism then carefully lifts the formed tablet from the die cavity, directing it to the collection area. Modern rotary tablet machines incorporate sensors and automated systems to monitor compression forces and adjust parameters in real-time, ensuring optimal tablet hardness and integrity throughout the production run.

Advanced Features and Control Systems

Electronic Monitoring and Feedback Systems

Modern rotary tablet making machines incorporate sophisticated electronic monitoring systems that continuously track critical parameters throughout the production process. These systems utilize advanced sensors to measure compression forces, tablet weight, and thickness in real-time. The data collected helps operators maintain precise control over the manufacturing process and ensure consistent tablet quality. The machine's integrated control panel displays vital information and allows for immediate adjustments to production parameters. This level of monitoring and control is essential for meeting GMP standards and maintaining consistent product quality throughout extended production runs.

Automatic Weight Control Technology

The implementation of automatic weight control technology represents a significant advancement in tablet manufacturing precision. This system continuously monitors tablet weight variations and automatically adjusts the fill depth to maintain target specifications. The technology incorporates sophisticated algorithms that analyze weight trends and make predictive adjustments to prevent deviations. Modern rotary tablet machines can achieve remarkable weight consistency, typically maintaining variations within ±1% of the target weight. This precision is crucial for pharmaceutical products where accurate dosage is essential for therapeutic efficacy.

Safety and Quality Assurance Features

Contemporary rotary tablet making machines are equipped with comprehensive safety and quality assurance features that protect both operators and product quality. These include emergency stop systems, guard interlocks, and dust containment mechanisms. The machines also incorporate automated rejection systems for tablets that don't meet specified parameters. Advanced models feature contamination prevention systems and easy-clean designs that facilitate quick changeovers between different products. These safety and quality features ensure compliance with GMP requirements while maintaining efficient production operations.

Optimization and Maintenance Requirements

Performance Optimization Strategies

Optimizing the performance of a rotary tablet making machine requires careful attention to multiple factors. Regular calibration of weight control systems ensures consistent tablet production, while proper tooling maintenance maximizes compression efficiency. Operators must carefully monitor and adjust speed settings based on material properties and target tablet specifications. The machine's maximum pressure capability of 60KN must be appropriately utilized based on formulation requirements. Implementing systematic performance monitoring helps identify potential issues before they affect product quality, ensuring consistent output and minimal downtime.

Preventive Maintenance Protocols

Establishing comprehensive preventive maintenance protocols is crucial for maintaining optimal machine performance and longevity. This includes regular inspection and replacement of wear parts, lubrication of moving components, and cleaning of powder contact surfaces. The maintenance schedule should align with production volumes and material characteristics. Special attention must be given to tooling maintenance, as wear in these components directly affects tablet quality. Regular calibration of sensors and control systems ensures accurate monitoring and adjustment of production parameters.

Troubleshooting Common Issues

Effective troubleshooting requires a systematic approach to identifying and resolving common issues that may arise during tablet production. This includes addressing weight variations, tablet defects, and mechanical problems. Operators must be trained to recognize early warning signs of potential issues and take appropriate corrective actions. Understanding the relationship between machine parameters and tablet quality helps in quickly resolving production problems. Regular documentation of troubleshooting activities helps build a knowledge base for future reference and training.

Conclusion

The rotary tablet making machine represents a remarkable achievement in pharmaceutical manufacturing technology, combining precision engineering with advanced control systems to produce high-quality tablets efficiently. Its sophisticated design and operation enable consistent production while maintaining strict quality standards. The ZP-12B model exemplifies these capabilities with its robust features and reliable performance.

Looking to elevate your pharmaceutical manufacturing capabilities? At Factop Pharmacy Machinery Trade Co., Ltd., we're committed to delivering excellence in tablet press machinery. Our experienced team provides comprehensive support from installation to ongoing maintenance, ensuring your investment delivers optimal performance. Our equipment meets international quality standards, including ISO9001:2015 and CE certification, with GMP-compliant manufacturing facilities. Experience our industry-leading service and technical support – contact us today at michelle@factopintl.com to discuss your specific requirements.
