How Does Bilayer Tablet Press Work?

Bilayer tablet press is a sophisticated pharmaceutical manufacturing technology that enables the production of tablets with two distinct layers, each potentially containing different active pharmaceutical ingredients or serving unique therapeutic purposes. This advanced machine represents a pinnacle of pharmaceutical engineering, allowing precise control over drug formulation, release mechanisms, and patient-specific medication delivery.

Understanding the Fundamentals of Bilayer Tablet Press Technology

Mechanical Design and Structural Components

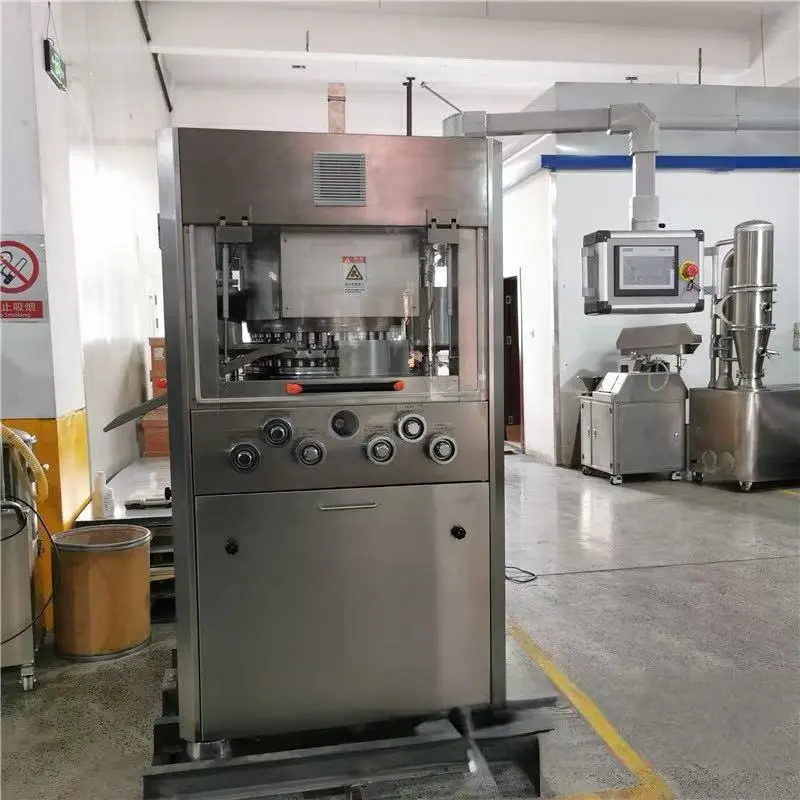

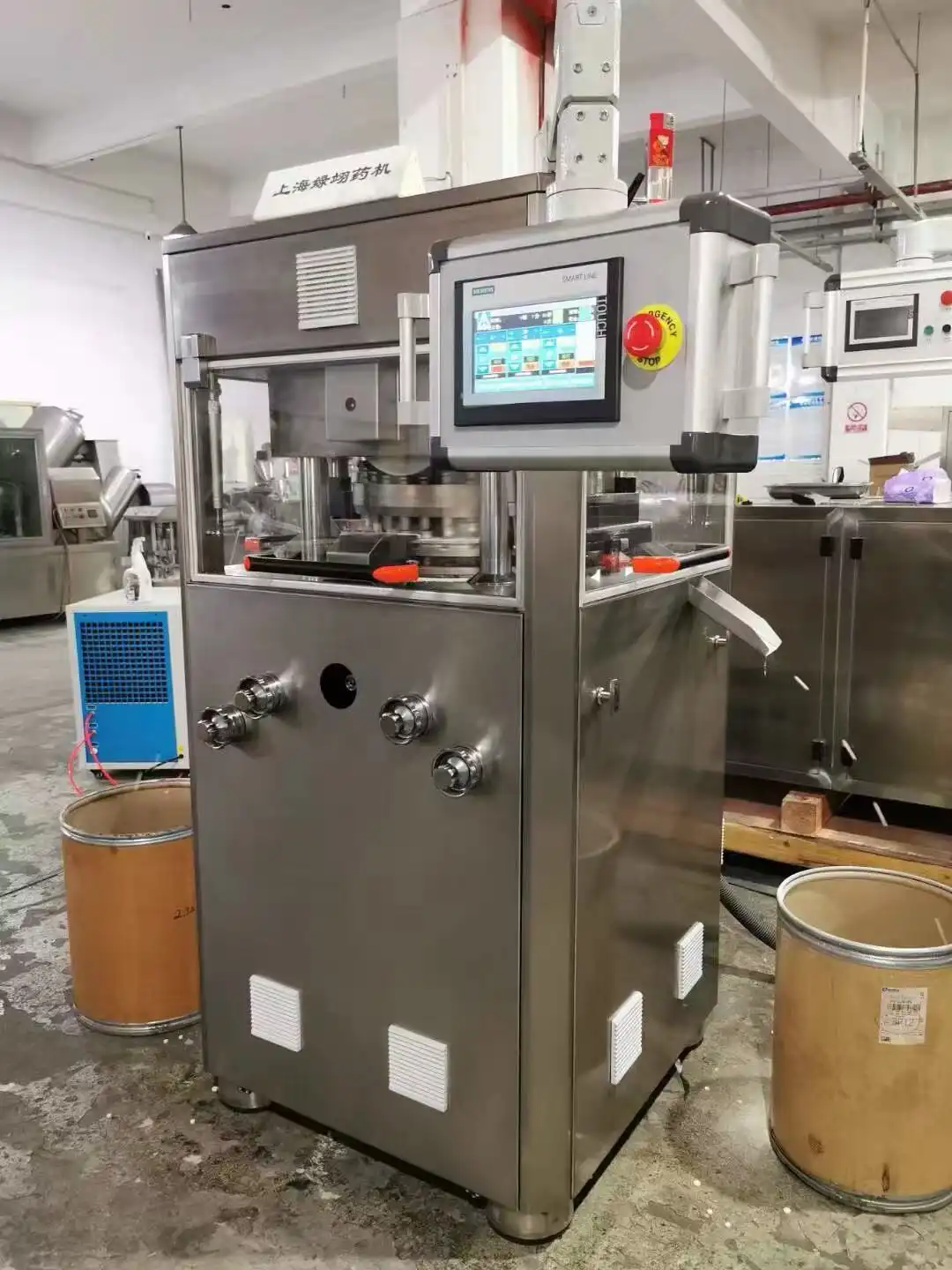

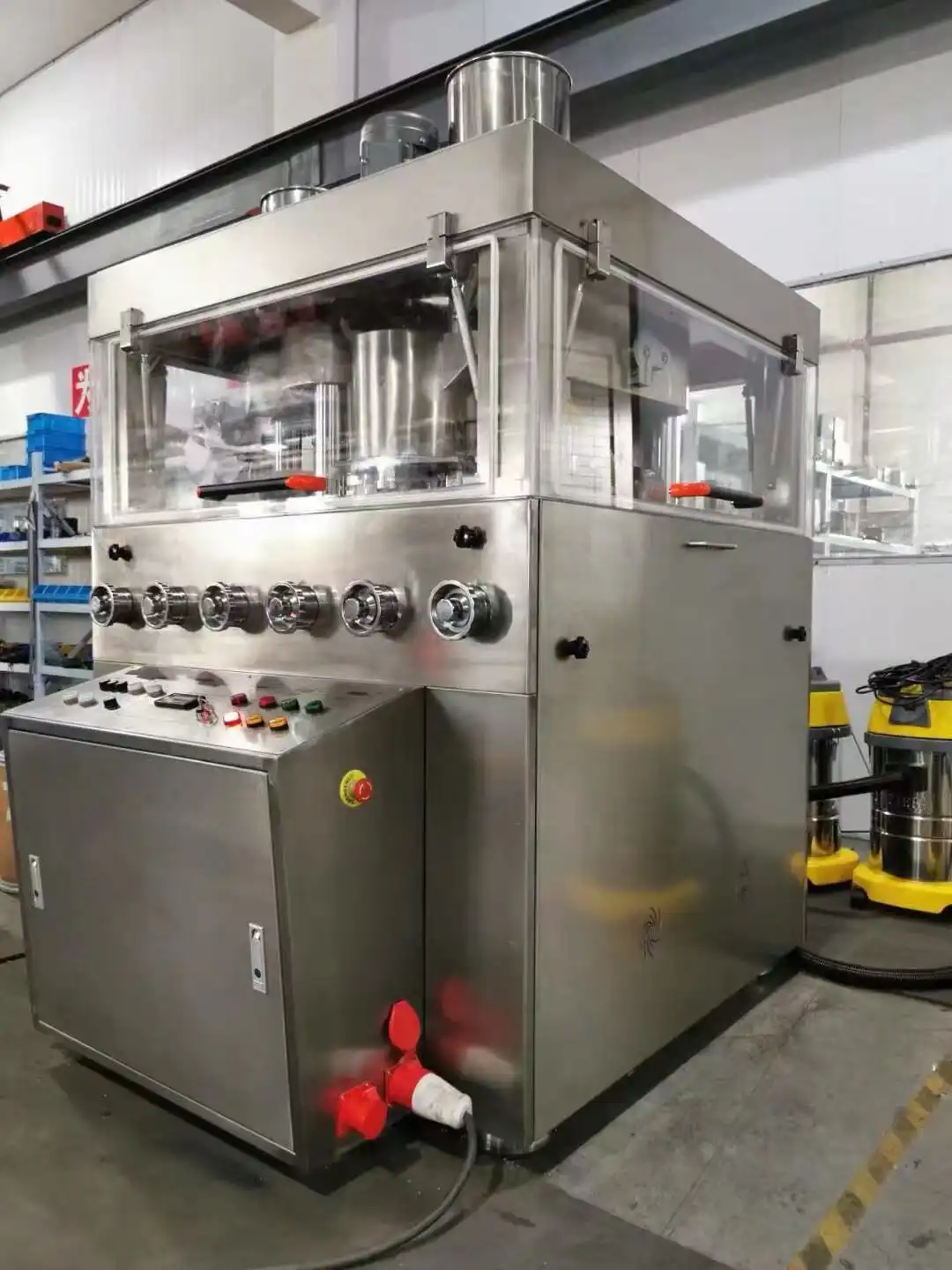

Bilayer tablet press machines are complex engineering marvels designed to create pharmaceutically precise multi-layered tablets. At the core of these machines is a sophisticated mechanism that allows for separate powder feed stations, independent compression forces, and precise layer delineation. The Factop Pharmacy machinery Trade Co., Ltd's GZP500 series exemplifies this technological sophistication, featuring a double-color pill press with 120KN pressure, 15mm filling depth, a maximum press diameter of 50mm, and a rotation speed of 25rpm. The mechanical structure typically includes multiple feeding stations, each equipped with independent hoppers, feed frames, and compression tooling. These components work in synchronized harmony to ensure each layer is uniformly compressed and perfectly integrated. The machine's robust frame provides stability, while precision-engineered punches and dies create the intricate layer boundaries.

Powder Feeding and Layer Separation Mechanisms

Precise powder feeding is critical in bilayer tablet press operations. Each layer requires independent powder flow control, ensuring consistent density and weight distribution. Advanced machines employ gravimetric or volumetric feeding systems that can handle different powder characteristics, from fine, cohesive powders to more granular formulations. The separation mechanism between layers is particularly crucial. Specialized tooling and intermediate compression stages prevent layer intermixing, maintaining distinct compositional boundaries. This is achieved through carefully calibrated compression forces, intermediate cleaning cycles, and precisely engineered punch and die geometries.

Compression and Tablet Formation Dynamics

Compression represents the most critical phase in bilayer tablet production. The bilayer tablet press applies sequential compression forces to each layer, ensuring optimal tablet integrity. The first layer undergoes initial compression, creating a stable foundation for the subsequent layer. The second compression stage then adds the top layer, with carefully controlled pressure to prevent delamination. Modern bilayer tablet presses like the Factop model incorporate advanced sensors and real-time monitoring systems. These technologies track compression forces, detect weight variations, and ensure consistent tablet quality. Pressure uniformity of 120KN across the GZP500 series guarantees reproducible tablet characteristics with minimal variation.

Advanced Technical Considerations in Bilayer Tablet Manufacturing

Material Compatibility and Formulation Challenges

Successful bilayer tablet production demands extensive understanding of material interactions. Different powders exhibit unique flow properties, compression behaviors, and potential chemical incompatibilities. Pharmaceutical engineers must carefully select excipients that ensure layer stability, prevent moisture migration, and maintain distinct release profiles. Compatibility testing becomes paramount. Advanced analytical techniques like differential scanning calorimetry, X-ray diffraction, and stability studies help predict potential interactions between layers. The goal is creating a unified tablet structure while maintaining the individual characteristics of each layer's formulation.

Process Validation and Quality Control

Rigorous process validation is essential in bilayer tablet manufacturing. This involves comprehensive testing protocols that evaluate dimensional accuracy, weight uniformity, dissolution profiles, and mechanical integrity. Statistical process control methodologies help identify and mitigate potential variability sources. Quality control extends beyond physical measurements. Advanced imaging technologies and spectroscopic techniques provide detailed layer interface analysis, ensuring no unintended mixing occurs during tablet formation. These validation processes align with stringent pharmaceutical manufacturing standards like GMP.

Technological Innovations and Future Perspectives

Emerging technologies are continuously refining bilayer tablet press capabilities. Machine learning algorithms now assist in optimizing compression parameters, while advanced materials science enables more complex multi-layered formulations. Nanotechnology and controlled-release mechanisms are expanding the potential of bilayer tablet designs. The integration of Industry 4.0 principles means future bilayer tablet presses will likely feature enhanced connectivity, predictive maintenance capabilities, and real-time quality monitoring. These developments promise increased efficiency, reduced waste, and more personalized pharmaceutical manufacturing approaches.

Precision Engineering in Multilayer Tablet Manufacturing

Computational Modeling of Layer Interaction Dynamics

Computational simulation technologies have revolutionized bilayer tablet press engineering by enabling precise predictive modeling of layer interactions. Advanced finite element analysis and molecular dynamics simulations allow researchers to anticipate potential structural compromises before physical manufacturing. These sophisticated computational techniques map potential powder particle interactions, compression stress distributions, and potential interface degradation mechanisms with unprecedented accuracy. Engineers can now virtually test multiple formulation scenarios, optimizing layer boundaries, compression parameters, and material compatibility through high-performance computing platforms.

Nano-Scale Interface Characterization Techniques

Emerging nano-scale analytical methodologies provide unprecedented insights into bilayer tablet microstructural interfaces. Techniques like atomic force microscopy and scanning electron microscopy enable researchers to examine molecular-level interactions between distinct pharmaceutical layers. These advanced characterization approaches reveal intricate details about powder particle arrangements, compression-induced structural transformations, and potential microstructural discontinuities. By understanding these nano-scale interactions, pharmaceutical engineers can develop more robust multilayer tablet formulations with enhanced stability and predictable performance characteristics.

Advanced Material Science in Multilayer Tablet Design

Material science innovations are transforming bilayer tablet press capabilities through sophisticated powder engineering techniques. Novel excipient developments, including smart polymers and controlled-release matrix materials, enable more complex multilayer tablet architectures. Researchers now manipulate particle size distributions, surface energies, and intermolecular interactions to create more sophisticated drug delivery systems. These advancements allow for precision-engineered tablets with tailored release profiles, improved bioavailability, and enhanced therapeutic efficacy across diverse pharmaceutical applications.

Conclusion

Bilayer tablet press technology represents a sophisticated intersection of pharmaceutical science and advanced engineering. By enabling precise, multi-layered tablet production, these machines contribute significantly to modern drug delivery strategies, offering enhanced therapeutic possibilities.

Professional Pharmaceutical Machinery Solutions

Factop Pharmacy machinery Trade Co., Ltd stands at the forefront of pharmaceutical processing technology. Our commitment to excellence is reflected in our mature technical team, GMP-certified factory, and comprehensive customer support. We don't just sell machines; we provide integrated solutions that meet the most demanding pharmaceutical manufacturing standards.

Our bilayer tablet press machines undergo rigorous testing, meeting international quality management system requirements. We offer wooden box export packaging, comprehensive FAT testing, and on-site installation support. Choose Factop for cutting-edge pharmaceutical machinery that transforms your production capabilities.

Interested in revolutionizing your pharmaceutical manufacturing? Contact our expert team at michelle@factopintl.com and discover how our advanced technologies can elevate your production processes.
