Pharmaceutical Capsule Filling Machine
Material: Stainless steel
Certificates: ISO9001, CE, GMP
Package: Export wooden packing
Appearance: New type finished machine
Warranty time: 24 months
- Product Description
Product Introduction
NJP-3800C fully automatic Pharmaceutical Capsule Filling Machine medicine powder, granule, pellets capsule maker, the capsule maker adopts a fully enclosed ten station turntable, and the upper and lower modules are designed with a double row 27 hole arrangement. The whole machine adopts a curved design, with smooth flow lines and a grand appearance. The equipment adopts PLC programming, human-machine interface operation, and touch screen display.
Automatic alarm display for operational faults or material shortages, automatic shutdown, and automatic elimination of alarms after troubleshooting.
The machine also has functions such as password input, parameter setting, printing data, and resetting. All key components such as transmission shafts, camshafts, and bearings of the machine are made of imported materials with superior quality, making it the preferred ideal equipment for filling drugs and fully complying with GMP requirements.
Main Parameter
| Model | NJP-3800C Pharmaceutical Capsule Filling Machine |
| Production capacity | 228000pcs/hour |
| Machine weight | 2200kg |
| Dimension | 1395*1180*2260mm |
| Voltage | 220/380V 50HZ |
| Motor | 10.5kw |
| Holes number | 27 holes |
| Vacuum | -0.04 to -0.08MPa |
| Dust | 24.5Kpa, 210m3/h |
| Air compressure | 12m3/h, 0.3-0.4MPa |
| Noisy | 78dBA |
| Accuracy | Empty 99.99%, Full 99.98% |
| Suitable | 000#-5# |
| Filling accuracy | West-medicine 3%, Chines-medicine 4% |
| Filling type | Powder, granule, pellets, tablets |

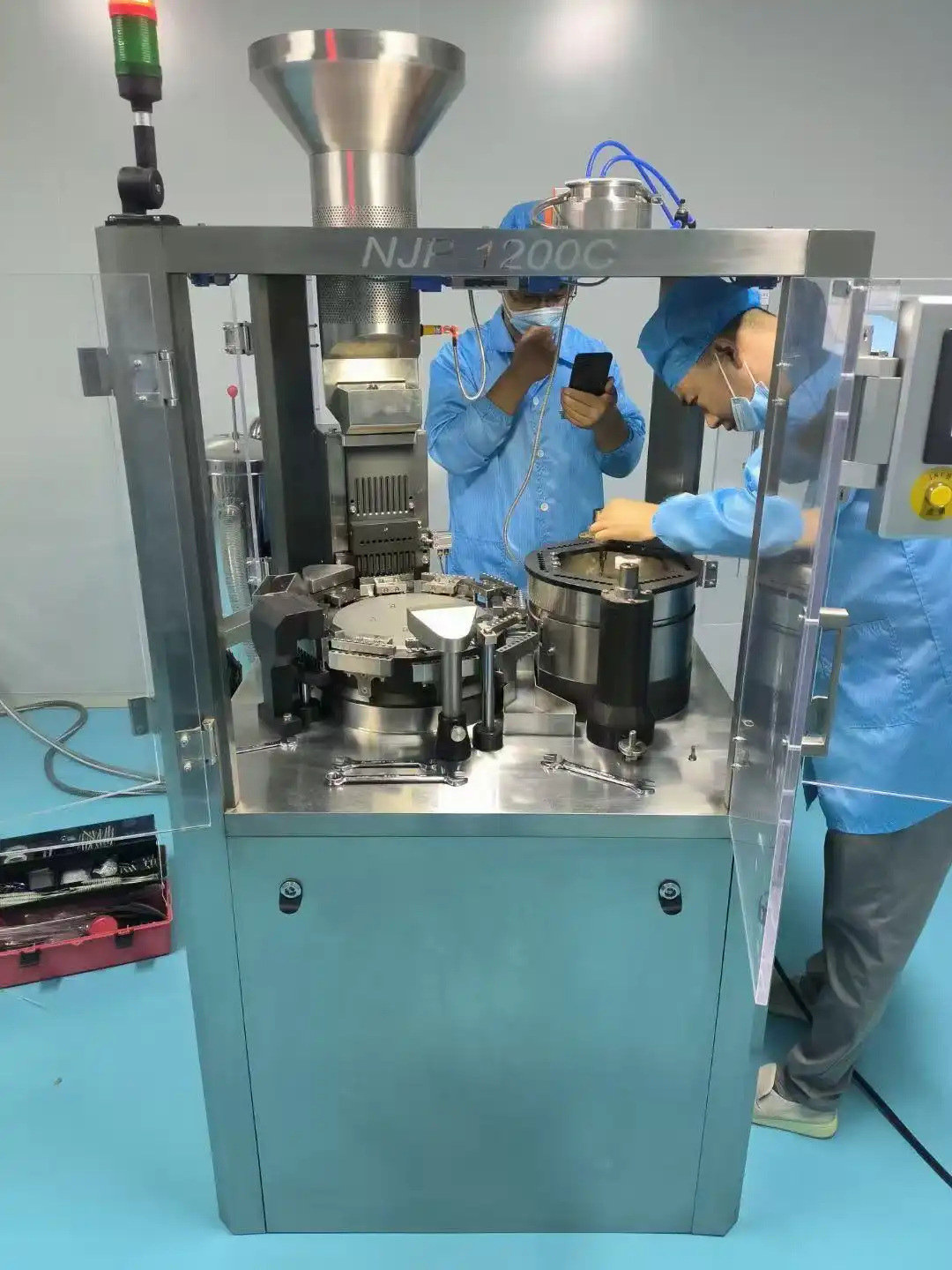

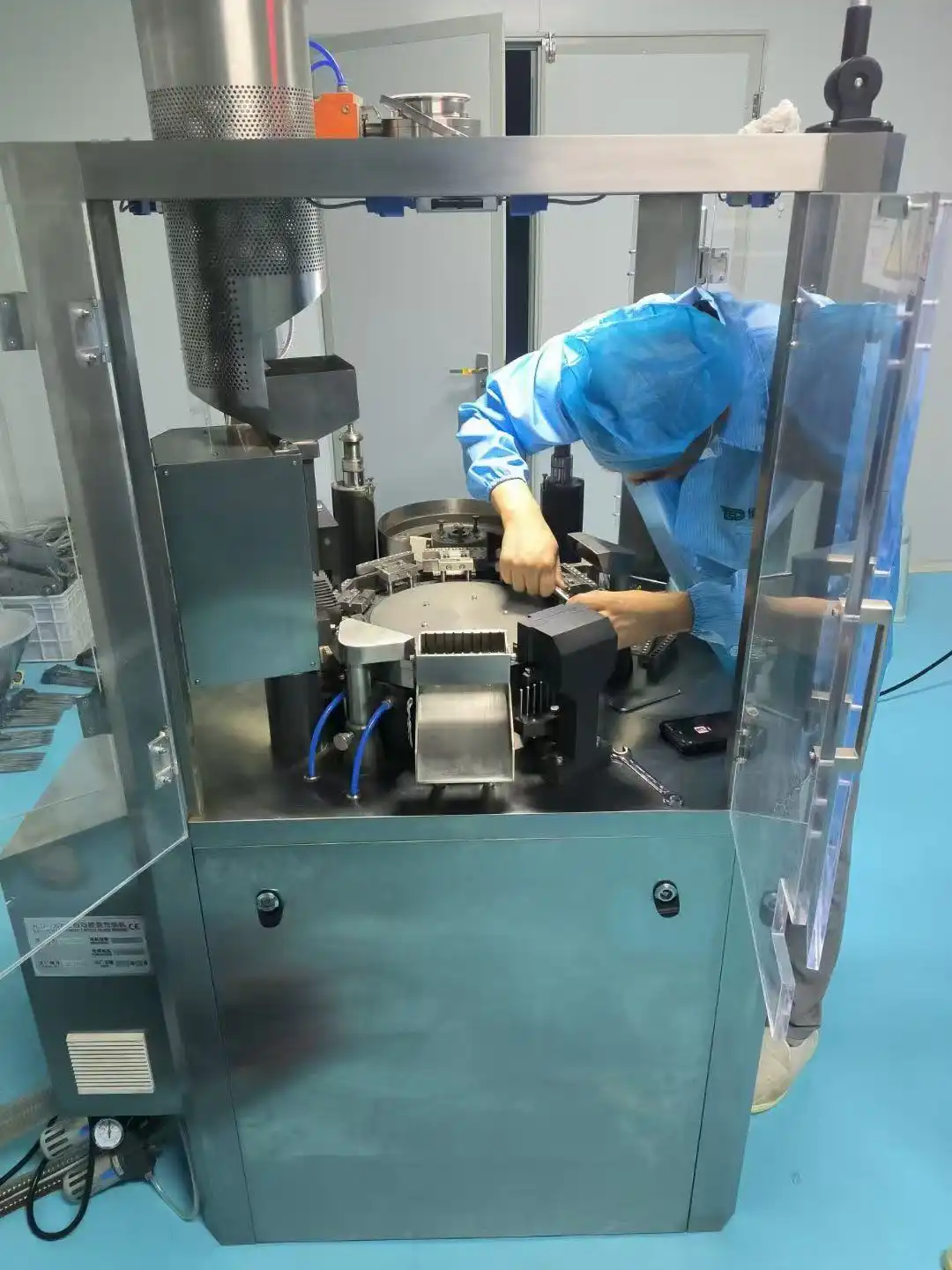

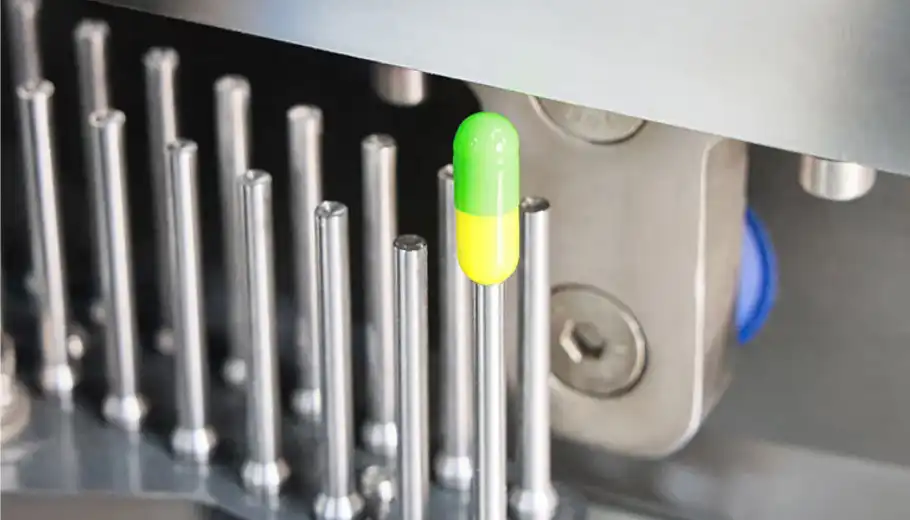

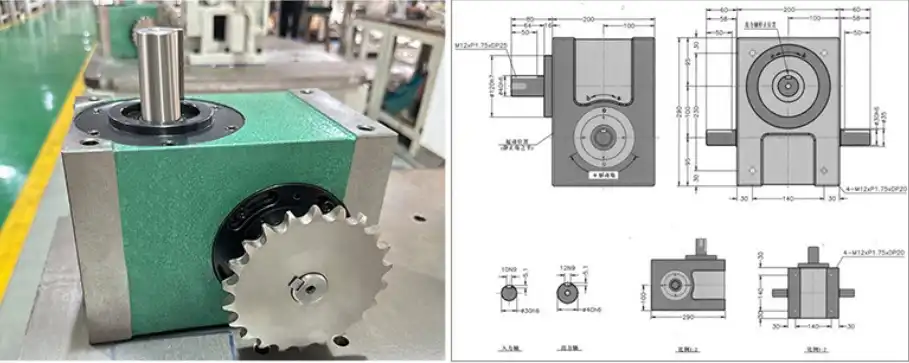

Machine details show: Before a machine is shipped out, it undergoes a comprehensive series of tests, including functionality tests, accuracy tests, and endurance tests. Our quality control team is trained to the highest standards and uses state - of - the - art inspection equipment to ensure that every automatic capsule filling machine leaving our factory is flawless. This meticulous approach to quality control has earned us a reputation for reliability among our clients globally.

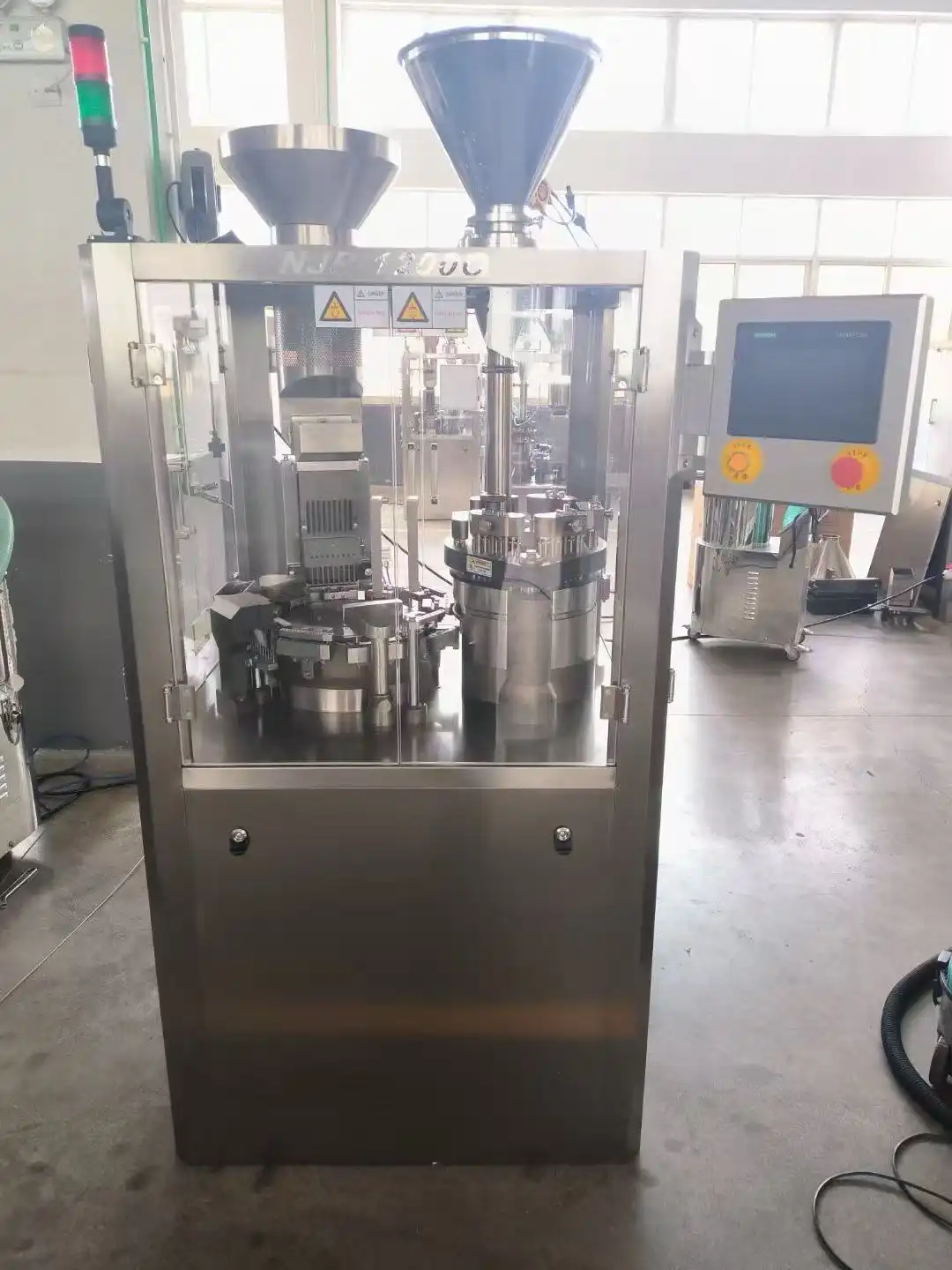

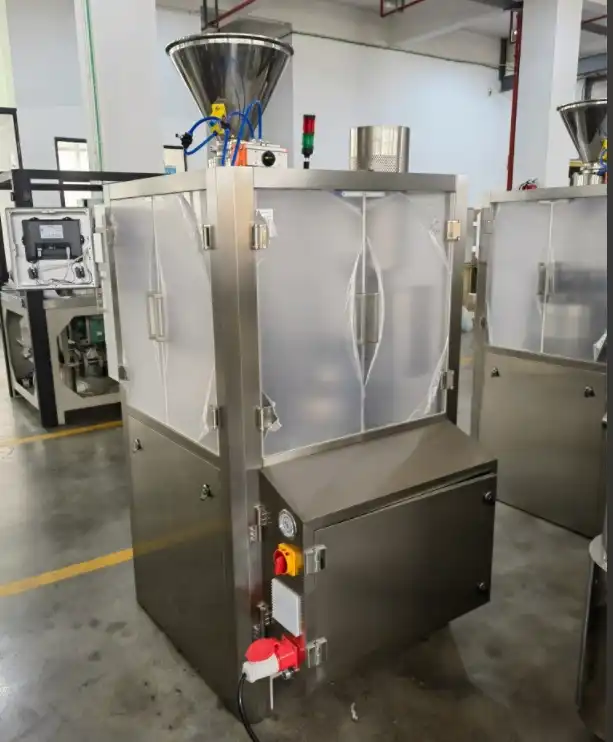

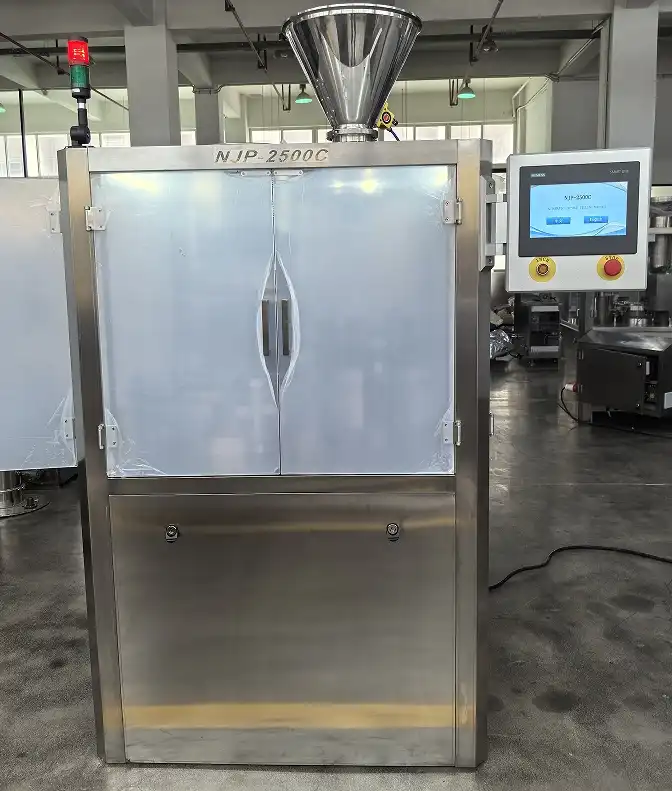

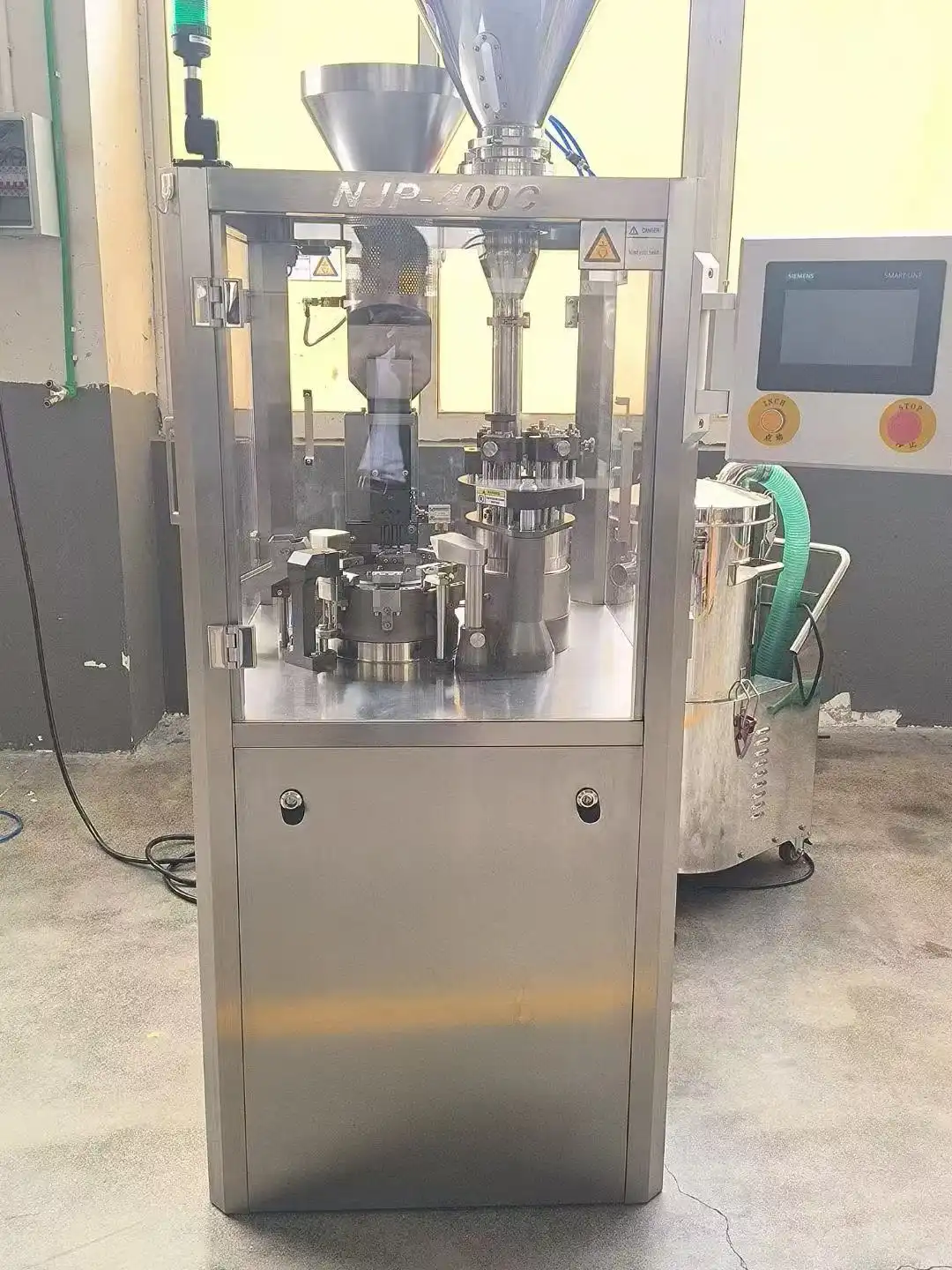

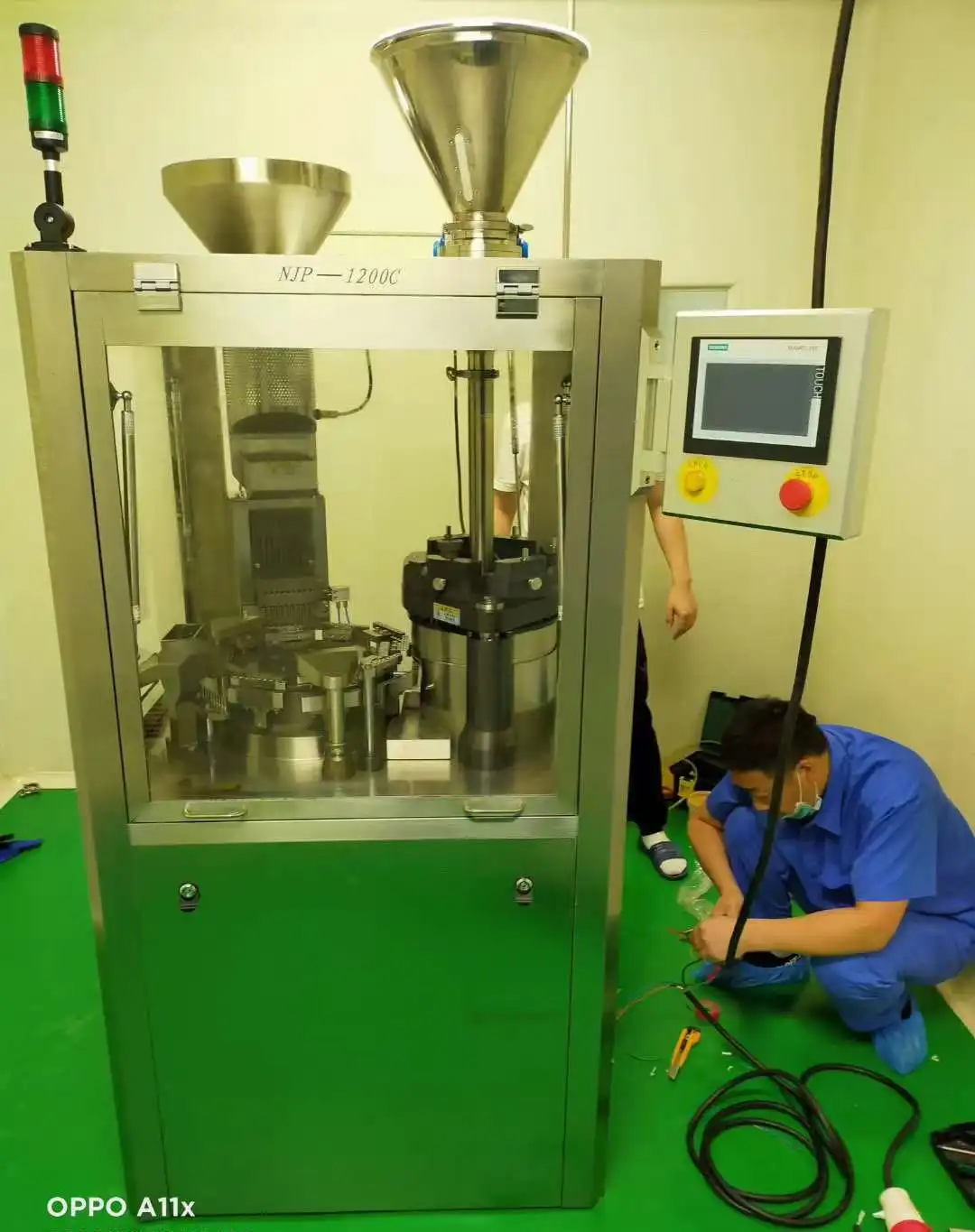

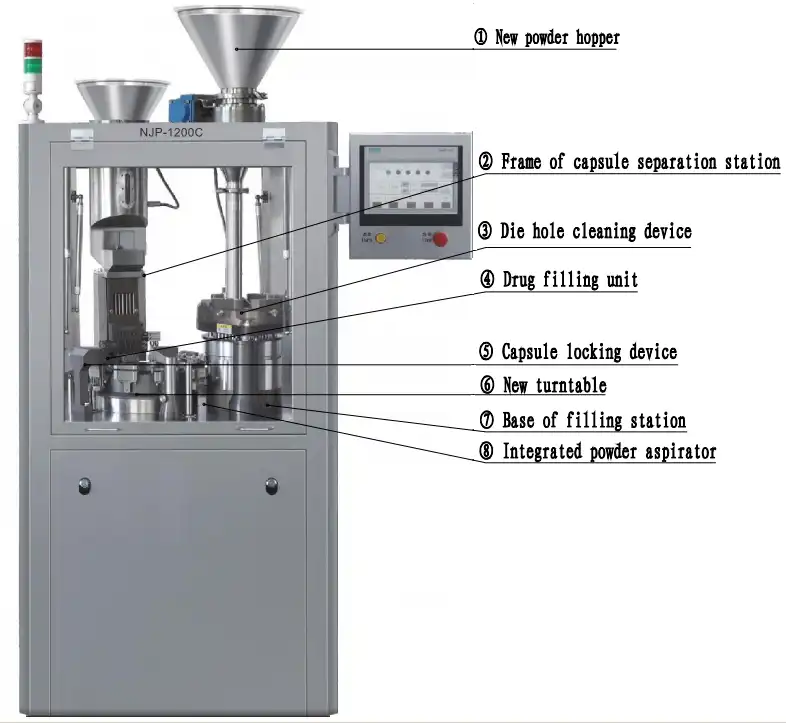

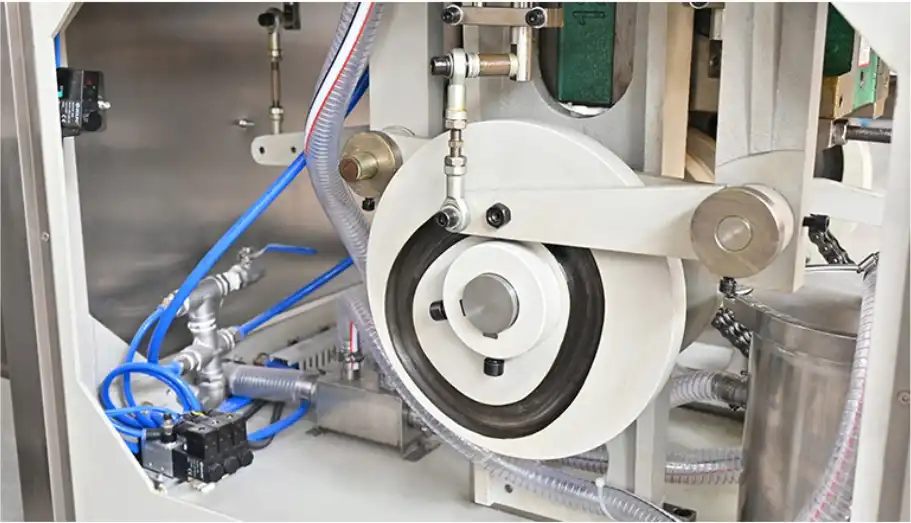

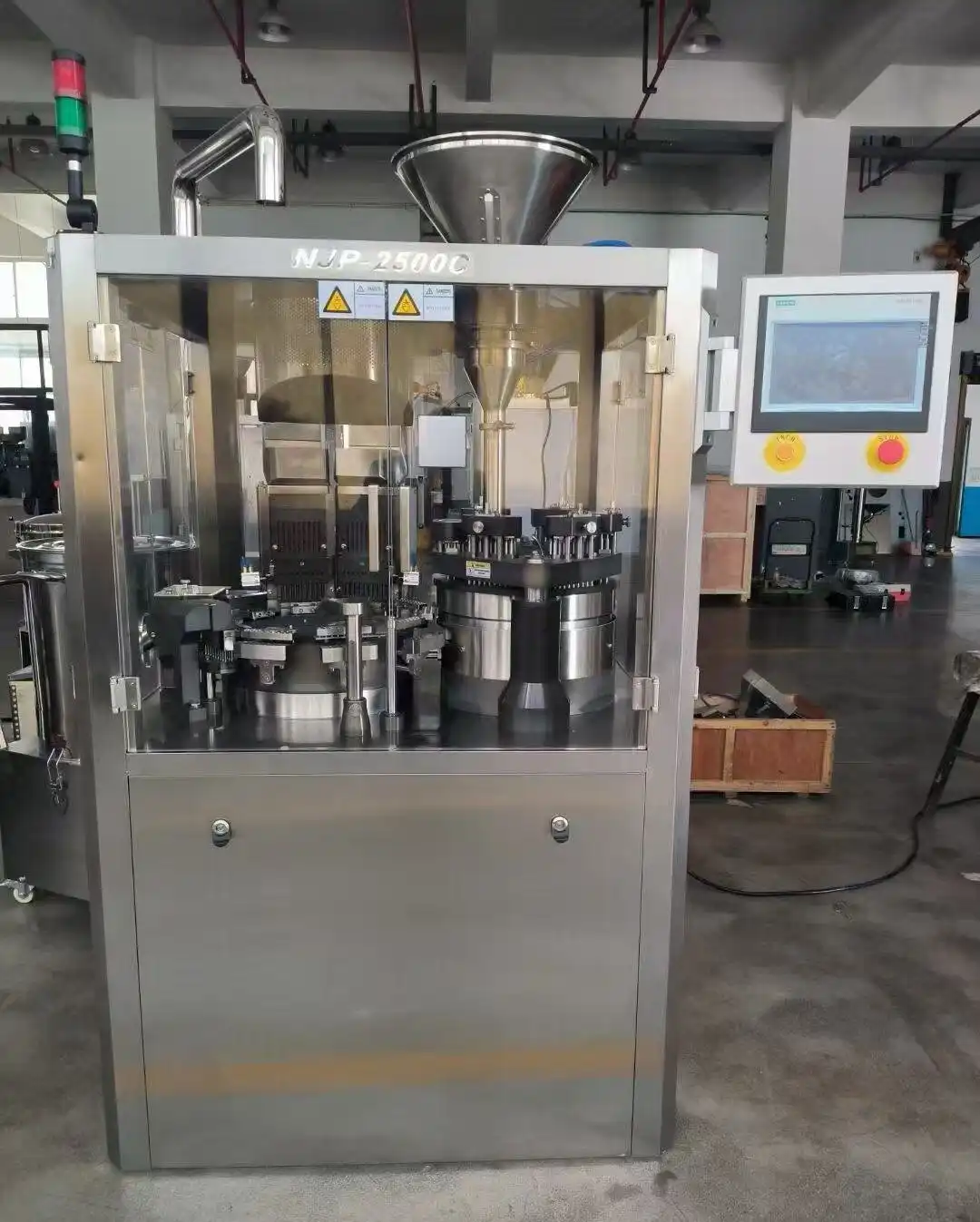

Machine Real Photos Show:
Quality is at the core of everything we do. Our quality control process begins with the selection of raw materials. Only high - grade stainless steel and non - toxic plastics that meet strict food and drug safety standards are used in the production of our machines. Each component undergoes multiple inspections during the manufacturing process, from initial machining to final assembly.
Application Areas
Our Pharmaceutical Capsule Filling Machine for Capsules are versatile, serving various industries, including:
- Pharmaceutical companies: For producing high-quality capsules and tablets.
- Food processing companies: For candy tablets, milk tablets, and throat lozenges.
- Health care products: For fish oil, vitamins, and dietary supplements in capsule form.
- Research & laboratories: Ideal for small-scale or R&D capsule filling.

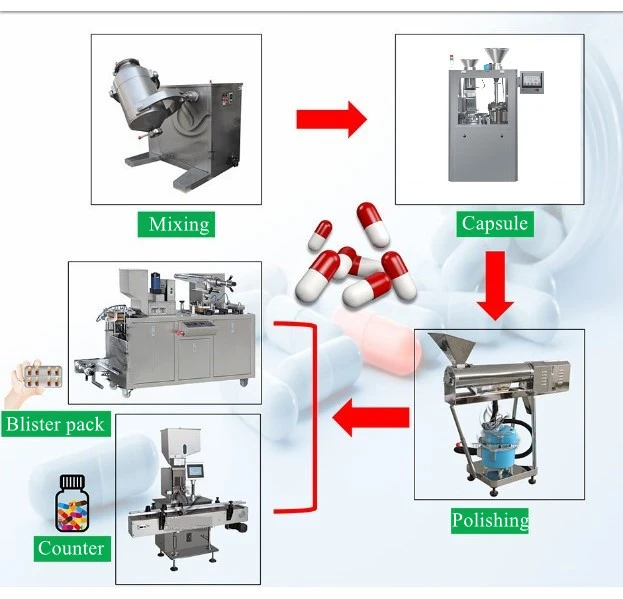

Production Process
Our Pharmaceutical Capsule Filling Machines are designed to streamline your production. The process begins with automatic capsule feeding, followed by accurate filling of the capsule with the powdered or liquid product. The machine then closes the capsule and checks the integrity before packaging. With high-speed operation and minimal downtime, your production line stays efficient and consistent.
Quality Control
At Factop, quality is our top priority. Our Pharmaceutical Filling Machines pass rigorous quality inspections, ensuring that they meet international standards. Our Pharmaceutical Filling Machine for Capsules undergo stringent checks for accuracy, precision, and reliability, adhering to GMP and ISO 9001:2015 standards.

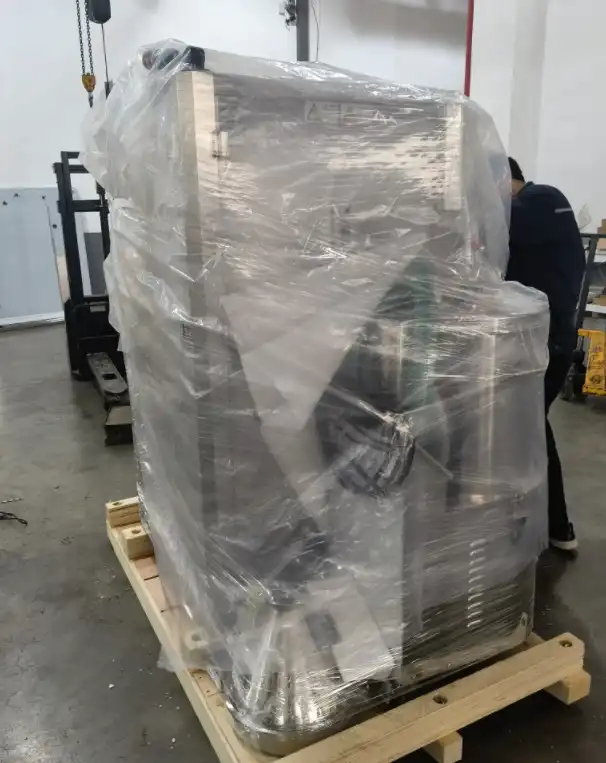

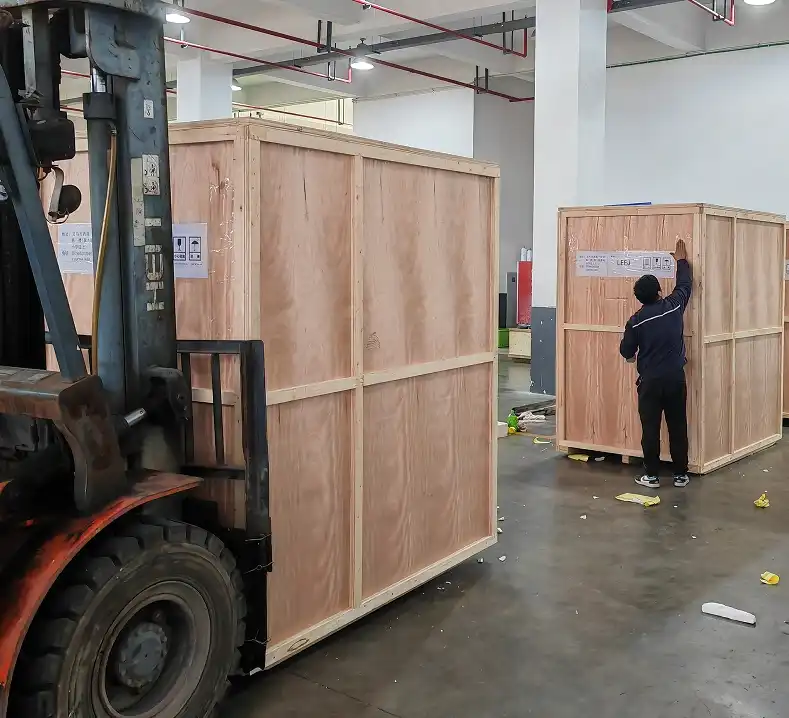

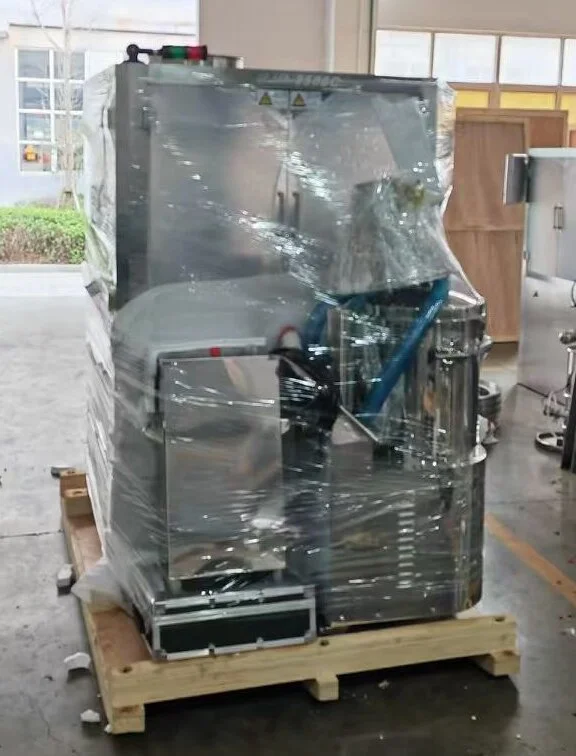

Packaging and Transportation
Reliable Pharmaceutical Capsule Filling Machines: Backed by Strong Factory, Ample Stock, and Exceptional Packaging. We ensure that all our machines are carefully packaged to avoid damage during transportation. Once your order is confirmed, your machine will be packaged and dispatched promptly, ready for use upon arrival.
After-Sales Service
We understand that Pharmaceutical Filling Machine reliability is essential to your business, which is why we provide comprehensive after-sales support. This includes machine installation, training, and ongoing maintenance services to ensure maximum uptime and long-term performance.
FAQ
Q: What is the warranty period for the Pharmaceutical Filling Machine for Capsules?
A: We offer a one-year warranty on all machines, covering parts and labor. Extended warranties are available upon request.
Q: Can the machine be customized to handle different capsule sizes?
A: Yes, our machines are versatile and can be adjusted to handle a range of capsule sizes, from 00 to 5.
Q: How easy is it to maintain the machine?
A: Our Pharmaceutical Filling Machine for Capsules are designed for easy maintenance, with simple cleaning procedures and readily available spare parts.
Q: Is installation included?
A: Yes, installation and commissioning are included as part of our after-sales service.
By choosing Factop Pharmacy Machinery Company, you invest in high-performance, reliable, and efficient Pharmaceutical Capsule Filling Machines tailored to meet your business’s needs. For more information or to inquire about purchasing, feel free to contact us at [michelle@factopintl.com].
